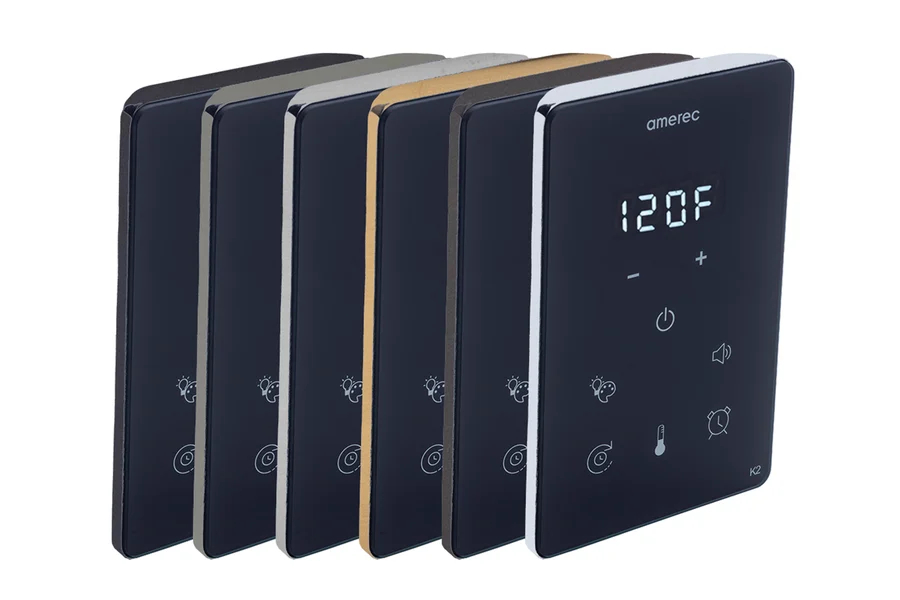

Amerec controls all have a black screen face.

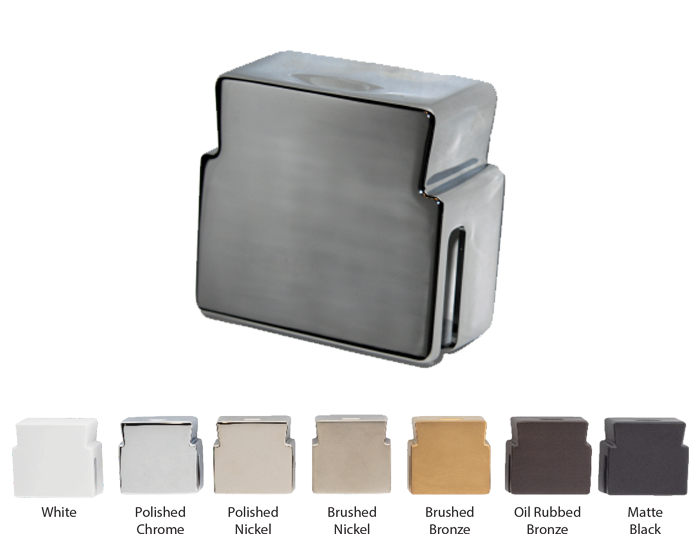

They are available with a variety of color trim rings with matching steamheads.
Standard and stock trim is Polished Chrome with Chrome steamhead.
Color Options as follows:
K2 and K3 colors: Polished Chrome,Polished Nickel, Brushed Nickel, Oil Rubbed Bronze, Matte Black, Brushed Bronze.
K4: Polished Chrome, Oil Rubbed Bronze, Matte Black, Brushed Bronze.
LED Kit includes two lights. Additional lights can be purchased
Size: |
Steambaths |
Type: |
Amerec Steam |
Bench: |
Amerec Steam Generator |
|
Steam (Amerec) : No selection $0.00 |
|
Amerec Steam Controls : No selection $0.00 |
|
Amerec Colors : No selection $0.00 |
|
Auto Drain : No selection $0.00 |
|
Drip Pan : No selection $0.00 |
|
LED-K2 Chromatherapy lights (K2 Control Only) : No selection $0.00 |
|
Fragrance Injector Kit : No selection $0.00 |
Product Price: $0,00
Options amount:
Select a Tab Below for More Info
Steam Sizing & Installation Manuals
Brochure & Installation Documents: See Here
| KW Rating | Max. Cu. Ft. Range | Volts/ Phase |
**90c Copper |
**Amps/ Breaker |
Model Dimensions L"xW"xH" |
| 4.5 | 60-90 | 240/1 | 10 | 19/30 | 16.5 x 6.25 x 15.5 |
| 6 | 80-150 | 240/1 | 8 | 25/40 | 16.5 x 6.25 x 15.5 |
| 7.5 | 100-200 | 240/1 | 8 | 29/40 | 16.5 x 6.25 x 15.5 |
| 9 | 150-300 | 240/1 | 8 | 38/50 | 16.5 x 6.25 x 15.5 |
| 11 | 200-400 | 240/1 | 6 | 46/60 | 16.5 x 6.25 x 15.5 |
| 14 (2 circuits) | 250-500 | 240/1 | 8 / 10 | 28/60 21/30 | 16.5 x 6.25 x 15.5 |
| Systems Using Two (or three) Generators in Tandem | |||||
| Rating | Max. Cu. Ft. Range | Volts/ Phase |
**90c Copper |
Amps/ Breaker |
Model Dimensions L"xW"xH" |
| 18 | 500-700 | 240/1 | 2 @ 9 kw. See above | ||
| 22 | 700-900 | 240/1 | 2 @ 11 kw. See above | ||
| 28 | 900-100 | 240/1 | 2 @ 14 kw. See above | ||
| 30 | 1000-1300 | 240/1 | 2 @ 11 kw + 1 @ 9kw. See above | ||
| 36 | 1200-1500 | 240/1 | 1 @ 14kw, 2 @ 11 kw. See above | ||
| Systems Using Two (or three) Generators in Tandem | |||||
| Rating | Max. Cu. Ft. Range | Volts/ Phase |
**90c Copper |
Amps/ Breaker |
|
| 18 | 500-700 | 240/1 | 2 @ 9 kw. See above | ||
| 22 | 700-900 | 240/1 | 2 @ 11 kw. See above | ||
| 28 | 900-100 | 240/1 | 2 @ 14 kw. See above | ||
| 30 | 1000-1300 | 240/1 | 2 @ 11 kw + 1 @ 9kw. See above | ||
| 36 | 1200-1500 | 240/1 | 1 @ 14kw, 2 @ 11 kw. See above | ||
** Wire/breaker size is recommendation only.
Consult your licensed electrician to confirm requirements.
Brochure & Installation Documents: See Here
| KW Rating | Max. Cu. Ft. Range (factor x1.35 for tile) |
Volts/ Phase |
**90c Copper Wire Size |
Amps/ Breaker |
Model Dimensions L"xW"xH" |
| 7.5 | 101-250 (185 tile/glass) | 240/1 | 8 | 31/40 | 15 x 6 x 15.5 |
| 10 | 251-450 (335 tile/glass) | 240/1 | 6 | 42/50 | 15" x 6" x 15.5" |
| 12 | 451-550 (410 tile/glass) | 240/1 | 4 | 50/60 | 17.75 x 7.5 x 15.5" |
| 15 | 551-675 (500 tile/glass | 240/1 | 3 | 63/80 | 17.75 x 7.5 x 15.5" |
** Wire/breaker size is recommendation only.
Consult your licensed electrician to confirm requirements.
